Additional Information
| TEMPEST Level | B |
|---|---|
| Based on | Dell Optiplex 7090MT |
| Casing | Commercial Midi-Tower |
| Processor | Up to i9 11th Gen. Intel® Core Processor |
| Memory | 8GB DDR4-2666, (max 128GB DDR4-2666) |
| Chipset | Intel® Q570 |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Sound | Integrated sound card and speaker |
| Storage | 500GB SATA 7200rpm Removable hard disk drive, (additional or higher capacity HDD, SDD or M.2 storage) |
| Optical Drive | DVD+/-RW super-multi Lightscribe optical drive |
| Interface ports | 1x DisplayPort, 2x front, 2x rear USB 2.0 (TYPE A), 1x USB Keyboard & 1x USB mouse port (TYPE A) |
| Keyboard | 105-Key QWERTY International Windows keyboard |
| Pointing device | Optical 2-button mouse with scroll wheel |
| Security | PnP and BIOS setup/boot password/setup password, TPM 2.0 chip on motherboard |
| Network | 1Gbps or 100Mbps Fibre Ethernet interface LC/SC connectors |
| Power | TEMPEST Level B Filtered Power supply, 110-230VAC 50/60Hz auto, 1.8m shielded power cable with country specific mains plug |
| Operating system | Windows 10 Pro 64-bit |
| Dimensions (HxWxD) | 36.7 x 16.9 x 30cm, Weight: 10.2kg |
Related Products

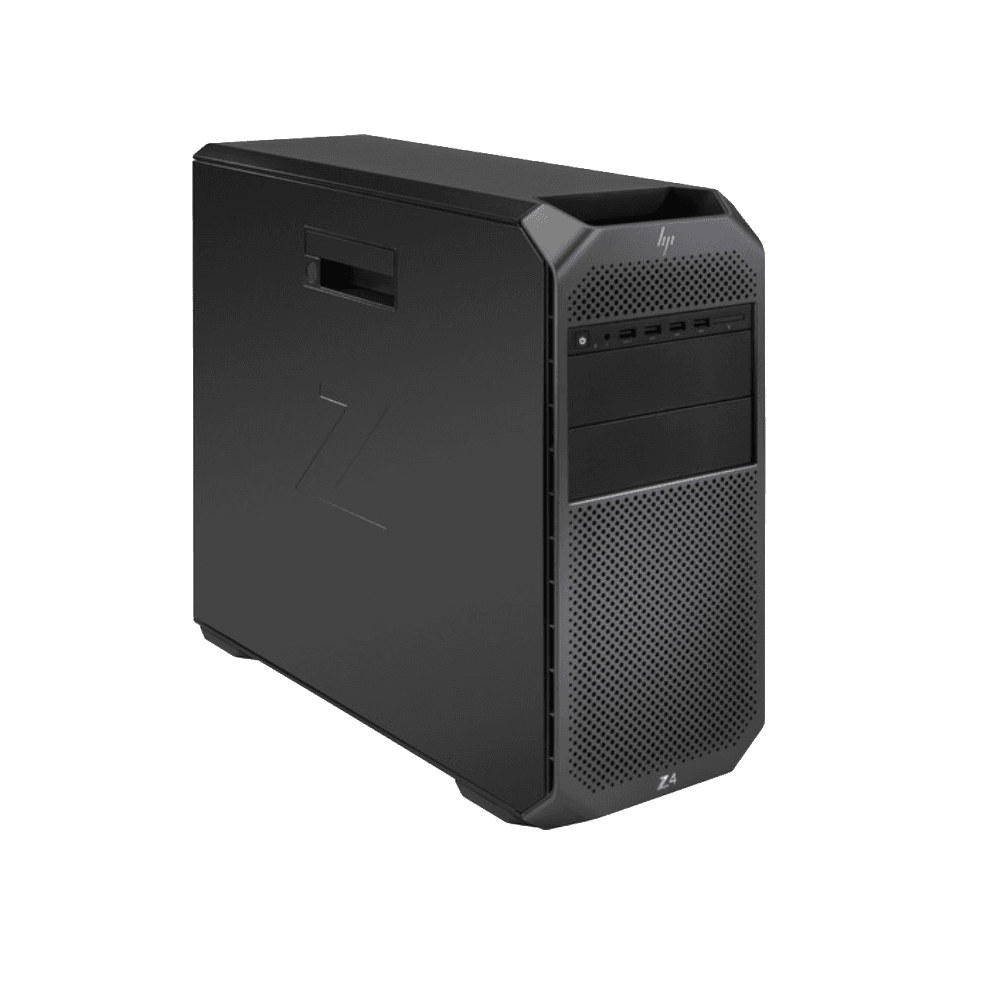

TMT1040 Z4 Workstation
TEMPEST Level A Based on HP Z4 Workstation G4 Casing Aluminium Midi Tower Processor Up to Intel® Xeon® W-series Processor Memory 16GB DDR4-2666 ECC, (max 256GB DDR4-2933) Chipset Intel® C422 (W Processor) Intel® X299 chipset (X Processor) Graphics NVIDIA® Quadro® P400 2GB Sound Integrated sound card and speaker Storage 1TB SATA 7200rpm 6Gb/s Optical Drive DVD+/-RW super-multi Lightscribe optical drive Interface ports 1x DisplayPort, 2x front, 2x rear USB 2.0 (DB9), 1x USB Keyboard & 1x USB mouse port (DB9) Keyboard 105-Key QWERTY International Windows keyboard Pointing device Optical 2-button mouse with scroll wheel Security PnP and BIOS setup/boot password/setup password, TPM 2.0 chip on motherboard Network 1Gbps or 100Mbps Fibre Ethernet interface LC/SC connectors Power TEMPEST Level A Filtered Power supply, 110-230VAC 50/60Hz auto, 1.8m shielded power cable with country specific mains plug Operating system Windows 10 Pro 64-bit Operating system Windows 10 Pro 64-bit Dimensions (HxWxD) 46 x 20 x 59cm, Weight: 15kg

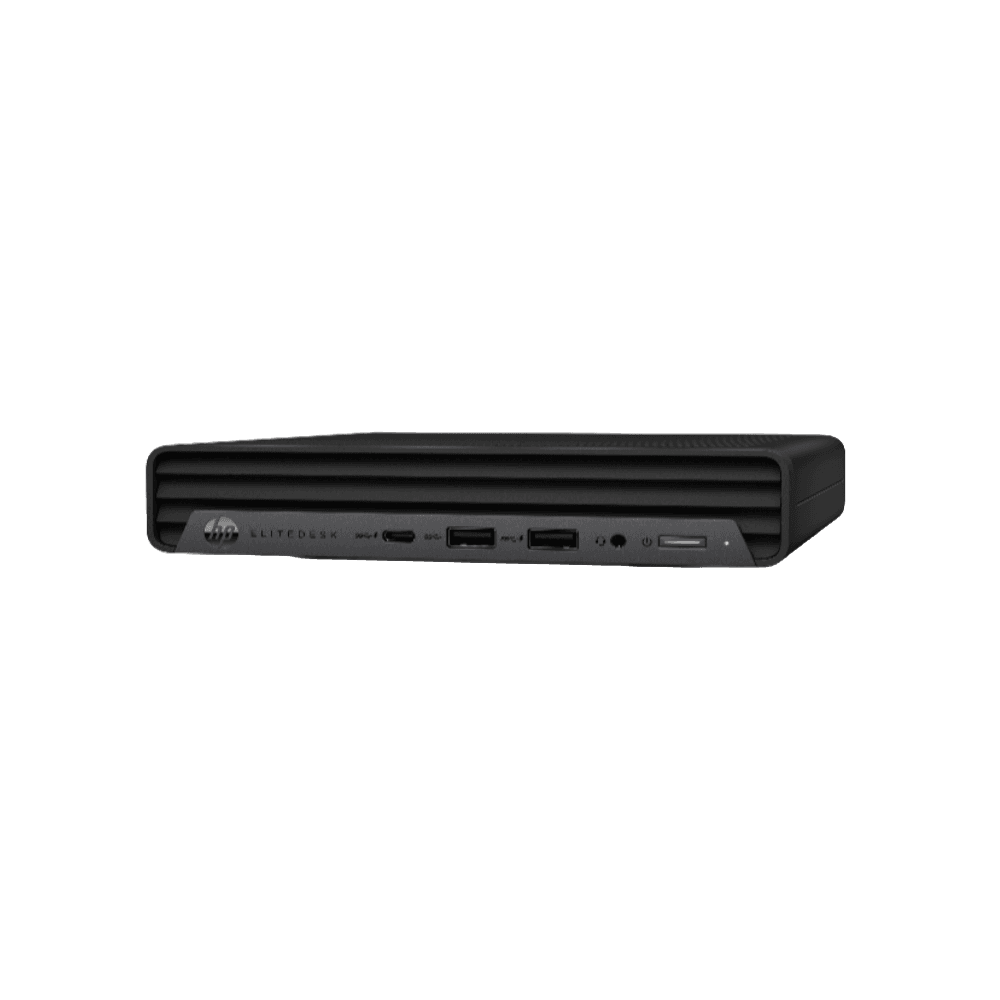

USFF4004 EliteDesk 800 Mini PC
TEMPEST Level B Based on HP EliteDesk 800 G6 mini Casing Commercial Mini PC (USFF) Processor Up to i9 10th Gen. Intel® Core Processors Memory 8GB DDR4-2666, (max 64GB DDR4-2666) Chipset Intel® Q470 Graphics Integrated Intel® UHD Graphics 630 Sound Integrated sound card and speaker Storage 500GB SATA 7200rpm Fixed hard disk drive Optical Drive None Interface ports 1x DisplayPort, 2x front, 2x rear USB 2.0 (DB9), 1x USB Keyboard & 1x USB mouse port (DB9) Keyboard 105-Key QWERTY International Windows keyboard Pointing device Optical 2-button mouse with scroll wheel Security PnP and BIOS setup/boot password/setup password, TPM 2.0 chip on motherboard Network 100Mbps Fibre Ethernet interface SC connectors Power TEMPEST Level B Filtered Power supply, 110-230VAC 50/60Hz auto, 1.8m shielded power cable with country specific mains plug Operating system Windows 10 Pro 64-bit Dimensions (HxWxD) 3.4 x 17.7 x 17.5cm, Weight: 1.25kg
TMT4004 Z4 Workstation
TEMPEST Level B Based on HP Z4 Workstation G4 Casing Commercial Midi-Tower Processor Up to Intel® Xeon® W-series Processor Memory 16GB DDR4-2666 ECC, (max 256GB DDR4-2933) Chipset Intel® C422 (W Processor) Intel® X299 chipset (X Processor) Graphics NVIDIA® Quadro® P400 2GB Sound Integrated sound card and speaker Storage 1TB SATA 7200rpm 6Gb/s Removable hard disk drive Optical Drive DVD+/-RW super-multi Lightscribe optical drive Interface ports 1x DisplayPort, 2x front, 2x rear USB 2.0 (TYPE A), 1x USB Keyboard & 1x USB mouse port (TYPE A) Keyboard 105-Key QWERTY International Windows keyboard Pointing device Optical 2-button mouse with scroll wheel Security PnP and BIOS setup/boot password/setup password, TPM 2.0 chip on motherboard Network 100Mbps Fibre Ethernet interface SC connectors Power TEMPEST Level B Filtered Power supply, 110-230VAC 50/60Hz auto, 1.8m shielded power cable with country specific mains plug Operating system Windows 10 Pro 64-bit Dimensions (HxWxD) 46 x 20 x 59cm, Weight: 15kg

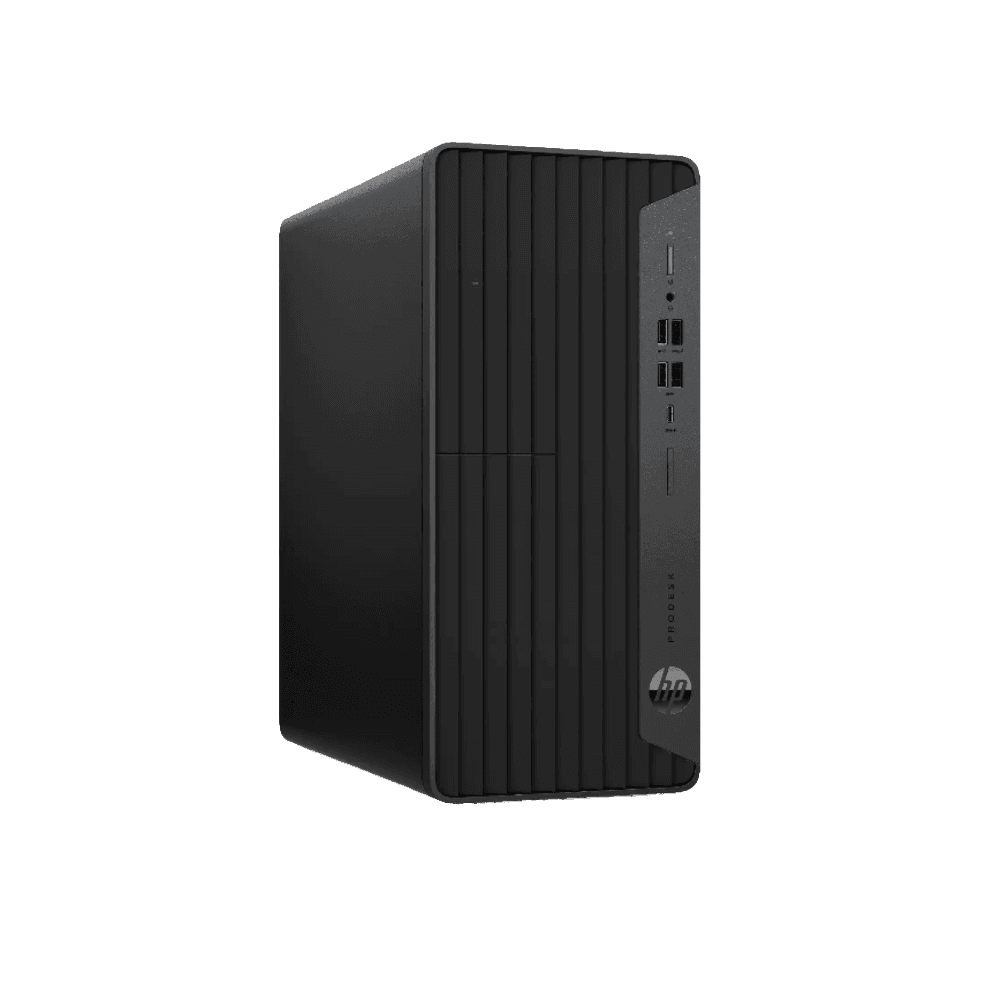

TMT4004 ProDesk 600 Midi Tower PC
TEMPEST Level B Based on HP ProDesk 600 G6 Casing Commercial Midi-Tower Processor Up to i7 10th Gen. Intel® Core Processors Memory 8GB DDR4-2666, (max 128GB DDR4-3200) Chipset Intel® Q470 Graphics Integrated Intel® UHD Graphics 630 Sound Integrated sound card and speaker Storage 500GB SATA 7200rpm Removable hard disk drive, (additional or higher capacity HDD, SDD or M.2 storage) Optical Drive DVD+/-RW super-multi Lightscribe optical drive Interface ports 1x DisplayPort, 2x front, 2x rear USB 2.0 (TYPE A), 1x USB Keyboard & 1x USB mouse port (TYPE A) Keyboard 105-Key QWERTY International Windows keyboard Pointing device Optical 2-button mouse with scroll wheel Security PnP and BIOS setup/boot password/setup password, TPM 2.0 chip on motherboard Network 100Mbps Fibre Ethernet interface SC connectors Power TEMPEST Level B Filtered Power supply, 110-230VAC 50/60Hz auto, 1.8m shielded power cable with country specific mains plug Operating system Windows 10 Pro 64-bit Dimensions (HxWxD) 33.7 x 15.5 x 30.3cm, Weight: 5kg

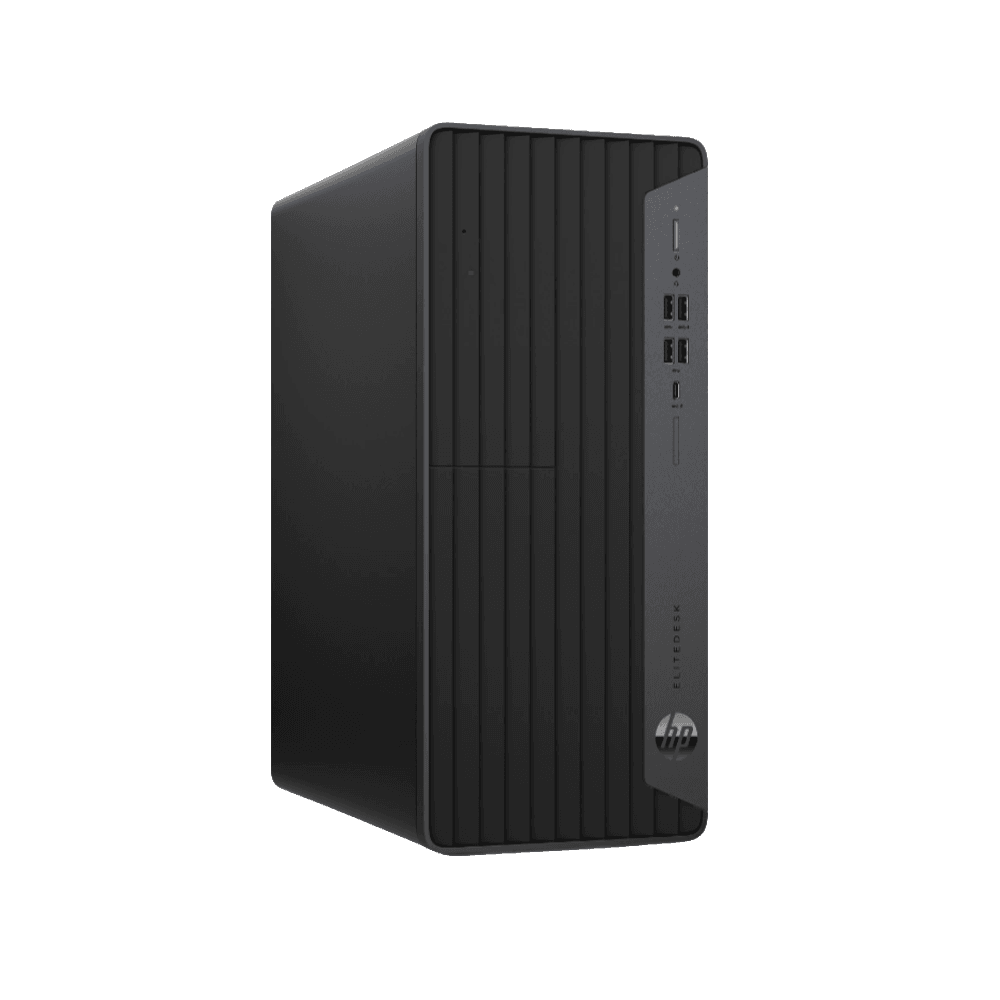

TMT4004 EliteDesk 800 Midi Tower PC
TEMPEST Level B Based on HP EliteDesk 800 G6 Casing Commercial Midi-Tower Processor Up to i9 10th Gen. Intel® Core Processors Memory 8GB DDR4-2666, (max 128GB DDR4-2933) Chipset Intel® Q470 Graphics Integrated Intel® UHD Graphics 630 Sound Integrated sound card and speaker Storage 500GB SATA 7200rpm Removable hard disk drive, (additional or higher capacity HDD, SDD or M.2 storage) Optical Drive DVD+/-RW super-multi Lightscribe optical drive Interface ports 1x DisplayPort, 2x front, 2x rear USB 2.0 (TYPE A), 1x USB Keyboard & 1x USB mouse port (TYPE A) Keyboard 105-Key QWERTY International Windows keyboard Pointing device Optical 2-button mouse with scroll wheel Security PnP and BIOS setup/boot password/setup password, TPM 2.0 chip on motherboard Network 1Gbps or 100Mbps Fibre Ethernet interface LC/SC connectors Power TEMPEST Level B Filtered Power supply, 110-230VAC 50/60Hz auto, 1.8m shielded power cable with country specific mains plug Operating system Windows 10 Pro 64-bit Dimensions (HxWxD) 16.8 x 37 x 30.8cm, Weight: 9.8kg

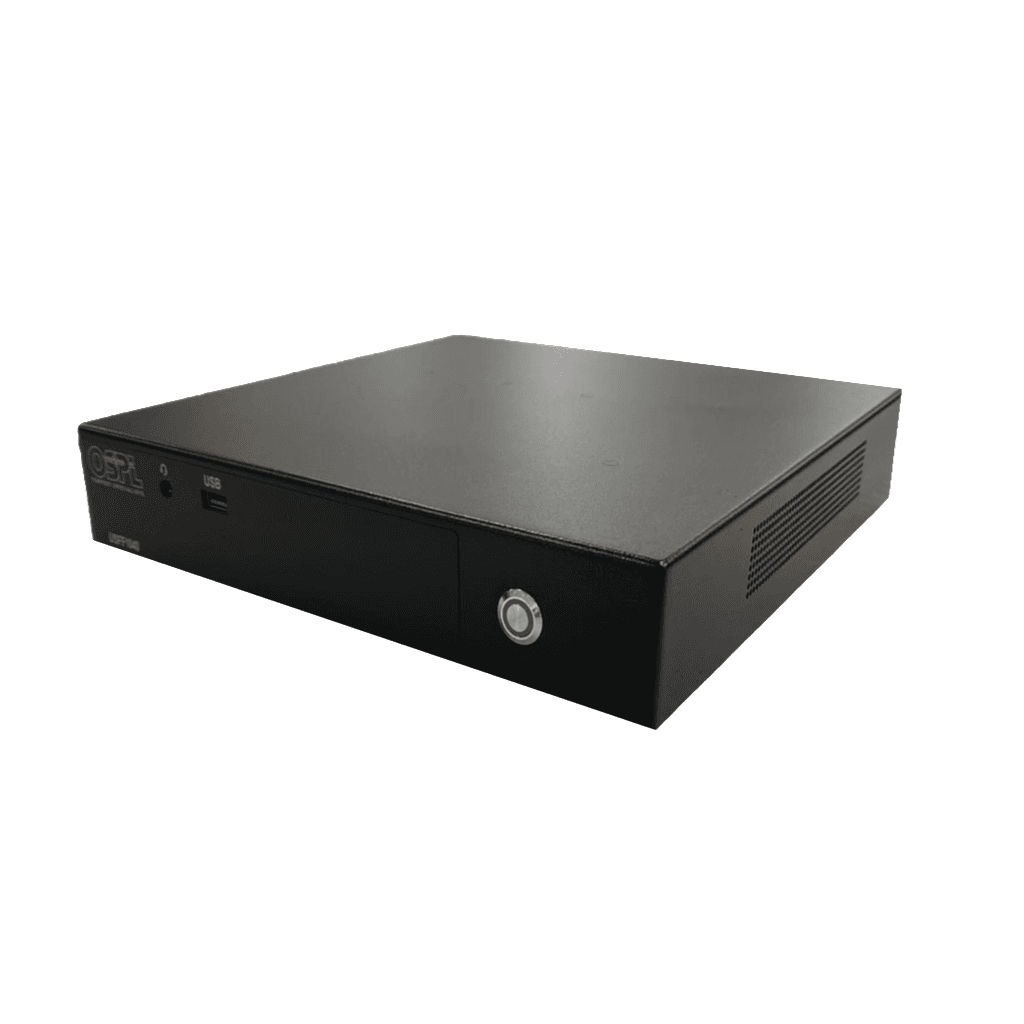

TEMPEST USFF PC
