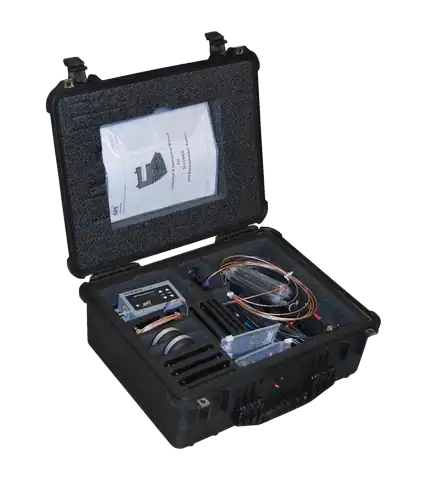

GLI Cobra Repeater Kit
Repeats a live L1/L2 GPS signal inside any ground vehicle or aircraft- No doubt that GPS is 100% operational! Engineered for field installation. No retrofit OEF / OIF combat proven core technology Enables Jump Master’s GPS Reduces time from dismount to breech on target Easily installed by soldier or maintenance personnel Waterproof & EMI sealed – Built for extreme mission environments Powered by 5590 batteries, or 12/28V vehicle power – Flexible power options LEDs on hardware – Easy to recognize that system is operational Ruggedized carrying case – Ideal for operational environment and field installation Selectable power level, allowing the user to control the area of signal coverage for Airborne and ground platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B
GLI Copperhead Repeater Kit
Repeats a live L1/L2 GPS signal inside any ground vehicle – No doubt that GPS is 100% operational! Available as a roll on/roll off or permanent install NVG compatible OEF / OIF combat proven core technology Reduces time from dismount to breech on target Easily installed by soldier or maintenance personnel Waterproof & EMI sealed – Built for extreme mission environments Powered by 5590 batteries, or 12/28V vehicle power Flexible power options LEDs on hardware – Easy to recognize that system is operational Ruggedized carrying case – Ideal for operational environment and field installation Selectable power level, allowing the user to control the area of signal coverage for ground platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B
GLI Cottonmouth Repeater Kit
Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B Repeats a live L1/L2 GPS signal inside any HMMWV variant- No doubt that GPS is 100% operational! Available as a roll on/roll off or permanent install NVG compatible OEF / OIF combat proven core technology Reduces time from dismount to breech on target Easily installed by soldier or maintenance personnel Waterproof & EMI sealed – Built for extreme mission environments Powered by 5590 batteries, or 12/28V vehicle power – Flexible power options LEDs on hardware – Easy to recognize that system is operational Ruggedized carrying case – Ideal for operational environment and field installation Selectable power level, allowing the user to control the area of signal coverage for ground platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B
GLI Viper Repeater Kit
This equipment has received Safety of Flight Approval from the United States Air Force Air Mobility Command Systems Group. GLI-VIPER provides GPS (including GPS supporting the Army’s modernization requirements) coverage within any aircraft. This means any handheld military or commercial GPS receivers, precision air drop guidance units and military free fall receivers acquire satellite signals inside the aircraft. The warfighter will have satellite connectivity and situational awareness prior to exiting an aircraft. A GPS receiver will experience no loss in signal coverage as it moves in or out of any aircraft equipped with GPS Live Inside. Based on technology developed for Boeing C17 Supports options not available in any other repeater Outperforms retransmission systems costing several thousand dollars more. GPS Retransmission technology developed by GPS Source, Inc. is currently utilized by Land Warrior units aboard Stryker, RG-33 and M1151 vehicles.

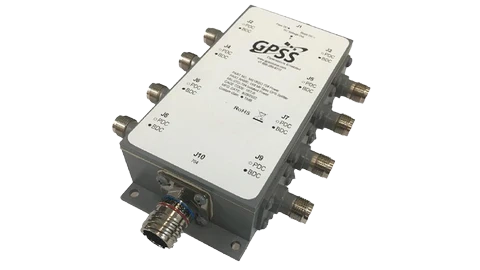

GPS 1×8 Military Qualified Splitter (MS18ISO)
The MS18ISO is a military qualified, one-input eight-output GPS splitter with a MIL-STD-704F compliant isolated power supply. A typical application involves an input from an active GPS roof antenna that is split evenly between eight GPS receivers/devices. The MS18ISO is standard configured to accept external DC input via the included 3-pin D38999 Mil DC power connector. The RF outputs, J2, J3, J4, J5,J6, J7, J8, and J9 are DC blocked standard and feature a 200 ohm DC load to simulate an antenna DC current draw for any receiver connected to that port. Key Features Designed and Manufactured to Military Specifications Passes L1/L2 GPS, Galileo, GLONASS, BeiDou (including M-code) Isolated Power Feature (MIL-STD-704F Compliance) Includes waterproofing, EMI shielding, and hermetic sealing standard Excellent Gain Flatness |L1 – L2| < 3 dB

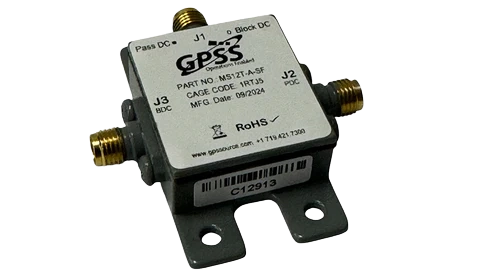

GPS 1×2 Military Tiny Qualified Splitter (MS12T)
A tiny qualified splitter that still delivers full-size performance, the MS12T is perfect for unmanned aerial vehicles (UAVs) or any other applications with size and weight constraints. It is standard configured with EMI Shielding, Waterproofing and is Hermetically Sealed for long-term durability in even the most rugged applications. The MS12T will allow the signal from one GPS antenna to be split between two GPS/GNSS devices. It can be configured to Pass DC from a connected receiver to also power an external GPS Antenna or both outputs can be DC blocked. Key Features The MS12T Tiny GPS Splitter is a one-input, two output GPS device in which the input from an active GPS antenna is split evenly between two receiving GPS units. Ideal for platforms requiring very small, lightweight, and/or low-power equipment (i.e. Unmanned Aerial Vehicle, UAV). The MS12T can be configured to pass DC from an RF output to the antenna input port in order to power an active GPS antenna. The second RF output is DC blocked and features a 200Ω resistive load to ground to simulate an antenna current draw for any receiver connected to that port. Both outputs can be specially configured to be DC Blocked upon request. Passes all GPS and GNSS frequencies Ideal for UAV Applications Small, Lightweight, and Low-power (SWaP) Tiny Package: 1.875in x 1.750in x 0.438 in. (47.0mm x 44.5mm x 11.0mm) RoHS, REACH, WEEE Compliant, CE Certified MIL-STD 810-F Environmental Qualifications

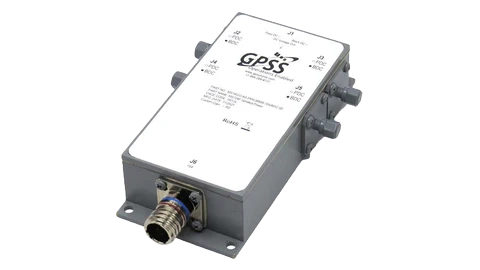

GPS 1×4 Military Qualified Splitter (MS14ISO)
The MS14ISO is a military qualified, one-input four-output GPS splitter with a MIL-STD-704F compliant isolated power supply. A typical application involves an input from an active GPS antenna that is split evenly between four GPS receivers/devices. The MS14ISO is standard configured to accept external DC input via the included 3-pin D38999 Mil DC power connector. The RF outputs, J2, J3, J4, and J5, are DC blocked standard and feature a 200 ohm DC load to simulate an antenna DC current draw for any receiver connected to that port. Key Features Designed and Manufactured to Military Specifications Passes L1/L2 GPS, Galileo, GLONASS, BeiDou (including M-code) Isolated Power Feature (MIL-STD-704F Compliance) Includes waterproofing, EMI shielding, and hermetic sealing standard Excellent Gain Flatness |L1 – L2| < 3dB

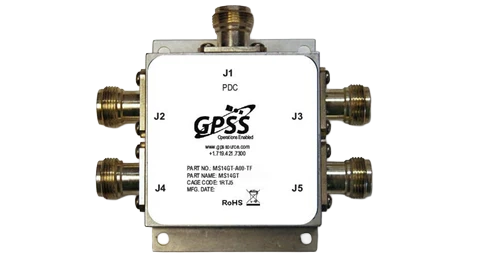

GPS 1×4 Military Qualified Splitter (MS14GT)
Designed for all GNSS frequencies, the MS14GT is a military qualified 1X4 GNSS splitter that makes it possible to use a single GPS referencing antenna to evenly distribute GPS/GNSS signals to up four devices/receivers simultaneously. Designed for ruggedized applications, the MS14GT is qualified to a wide range or MIL-STDs. The MS14GT features an antenna DC bias select circuit. This allows for the active antenna DC input from devices connected to any of the four outputs be applied to any or all RF outputs. With this feature, one DC voltage will be chosen to power the antenna while others will be switched to DC loads which will prevent any antenna alarm faults from connected devices. Designed for redundancy, if the selected DC bias input should fail (or the device is disconnected), the DC bias will automatically switch to another DC input to ensure an uninterrupted supply to the active antenna and maintaining GPS lock at all of the other devices. Optimum signal quality with low noise and balanced gain Designed to support rugged, reliable, trouble-free deployment DC bias select automatically switches port if selected DC bias input fails MS14GT is standard configured with high isolation (does not require unused outputs to have 50 ohm terminations) Standard configurations includes N(f), SMA(f), and TNC(f) connectors Key Features Designed and manufactured to military specifications Includes EMI shielding, waterproofing and hermitically sealed feature standard Delivers GPS, Galileo, GLONASS and BeiDou (all GNSS frequencies) to multiple devices and receivers Amplified to offset splitter losses while providing high isolation CE Certified, RoHS, REACH, UKCA Compliant

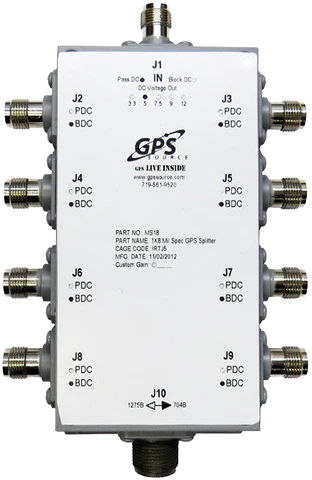

GPS 1×8 Military Qualified Splitter (MS18)
This is a military qualified MS18 GPS splitter with one-input and eight-outputs. It typically finds application where an input from an active GPS roof antenna is split evenly between eight receiving GPS units. The MS18 can be configured to pass DC from an RF output (J2) to the antenna input port (J1) in order to power an active GPS antenna on that port. The remaining RF outputs (J3 thru J9) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to that port. Alternatively, the MS18 can be configured with a MIL-STD-704 or MIL-STD-1275 compliant 28 VDC Power Supply that will power the active GPS antenna connected to J1. Key Features Designed & manufactured to military specifications Includes waterproofing, EMI shielding, and hermetic sealing standard Amplified & passive versions available Passes GPS, Galileo, and GLONASS L1/L2, Secure GPS Excellent Gain Flatness Gain | L1 – L2 | < 3 dB
