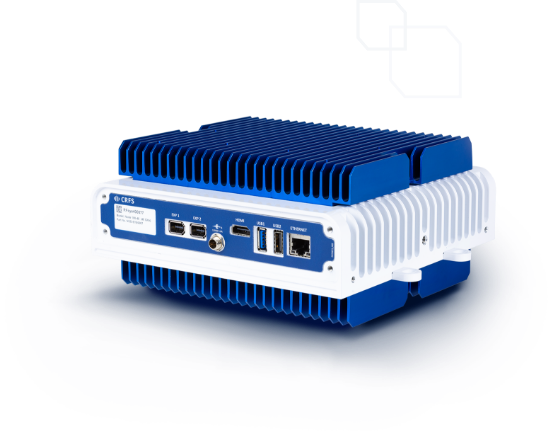

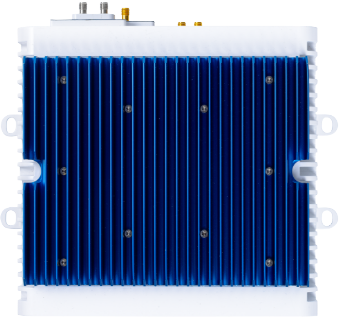

RFeye Node 100-40 overview
The RFeye 100-40 is a high-performance RF sensor with a 9 kHz – 40 GHz frequency range and a 100 MHz instantaneous bandwidth. The RFeye Node 100-40 enables operators to monitor higher frequencies with advanced signal intercept by incorporating the latest superheterodyne receiver technology.
This fourth-generation RF sensor has in-built edge processing, reducing backhaul data bandwidth. Excellent phase noise, low noise figure, and superb spurious free dynamic range, coupled with FPGA technology, enables easy integration and exploitation of the SDR and computer platform.
- Real-time continuous spectrum operations
- Finds low-power signals
- Detects signals that have a low probability of intercept
- Compatible with GPS, BeiDou, GALILEO, and GLONASS
- Gateway to powerful software and APIs
- Flexible deployment – rugged indoor or outdoor RF sensors for fixed, temporary, or mobile platforms
IP67 rated

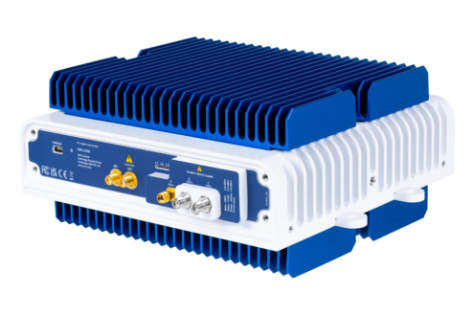

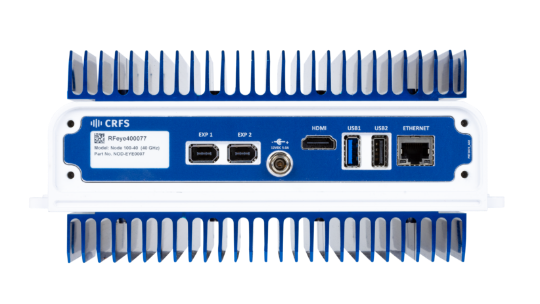

All RFeye Nodes are designed for outdoor deployment in extreme environments and operate between -30oC – +550C. The MIL-spec I/O connectors, weatherproof RF connectors and sealing gaskets provide IP67-rated protection.
