Tactical direction finding

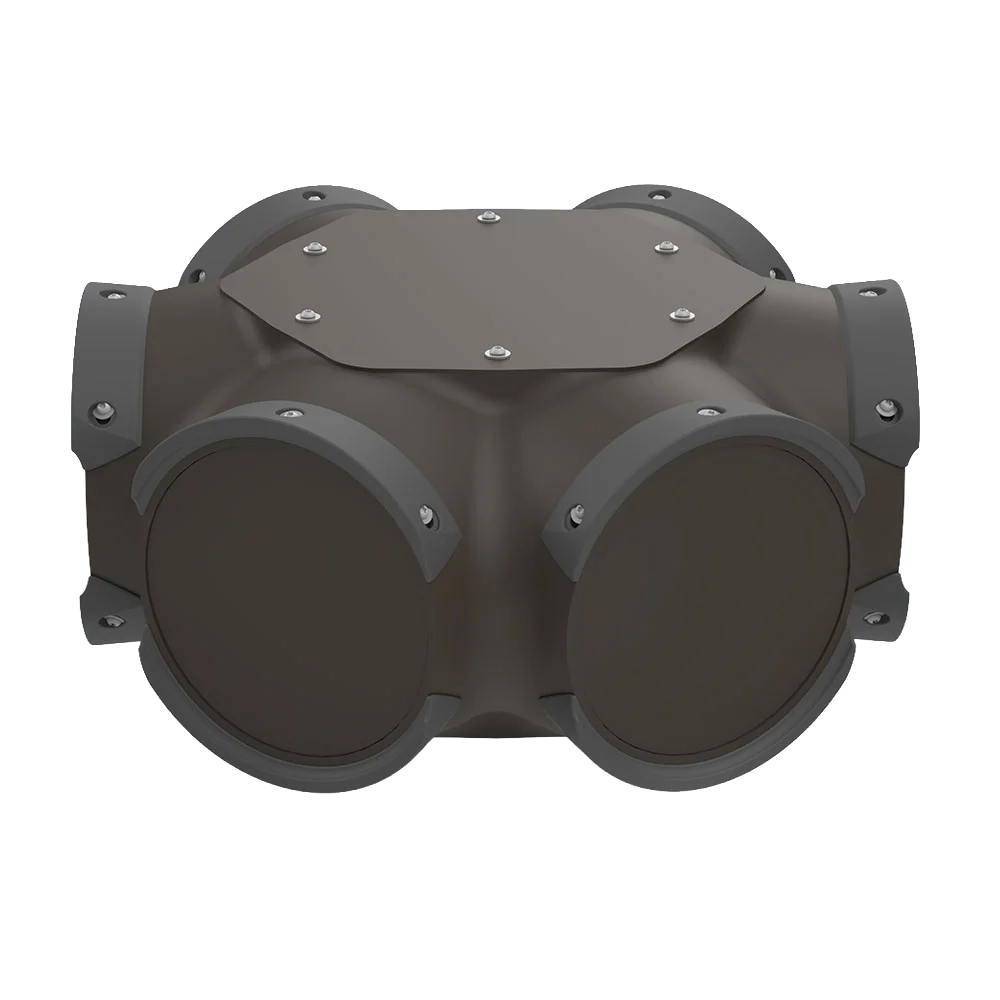

The DFH18 is a Compact Direction-Finding Head operating from 500MHz to 18GHz. It combines high-precision direction-finding (AoA) with wideband spectrum monitoring 2D/3D TDoA in a rugged, tactical format.
Overview
The DFH18 Direction Finding antenna is a robust, field-ready solution for real-time 500MHz–18GHz line-of-bearing (LOB) with a typical DF accuracy of less than 2.5° RMS. It is compatible with the RFeye Node 100-18 and RFeye Node 100-40 and can be attached to any existing RFeye Node.
Six high-performance spiral antennas with high-speed commutation and precise timing enable synchronized data correlation across multiple DF Heads and RFeye Nodes, delivering accurate geolocation of target signals using combined AoA and TDoA techniques.
LOBs can be overlaid onto a wide variety of maps, satellite images, and 2D / 3D GIS datasets to give a unique positional display showing source geolocation probabilities. All signal types in the range can be mapped, irrespective of signal power, bandwidth, or frequency.
Lightweight (7.5kg) and rapidly deployable, the DFH18 can be fully integrated into CRFS sensor networks and software ecosystems. Ideal for electromagnetic operations, border security, interference hunting, and wideband UHF/SHF/EHF COMINT/SIGINT operations.
CRFS offers a selection of interchangeable DF Heads designed for use with Rapid Deployment Kits (RDKs), allowing users to build a toolkit suited to each mission.
