Tactical direction finding

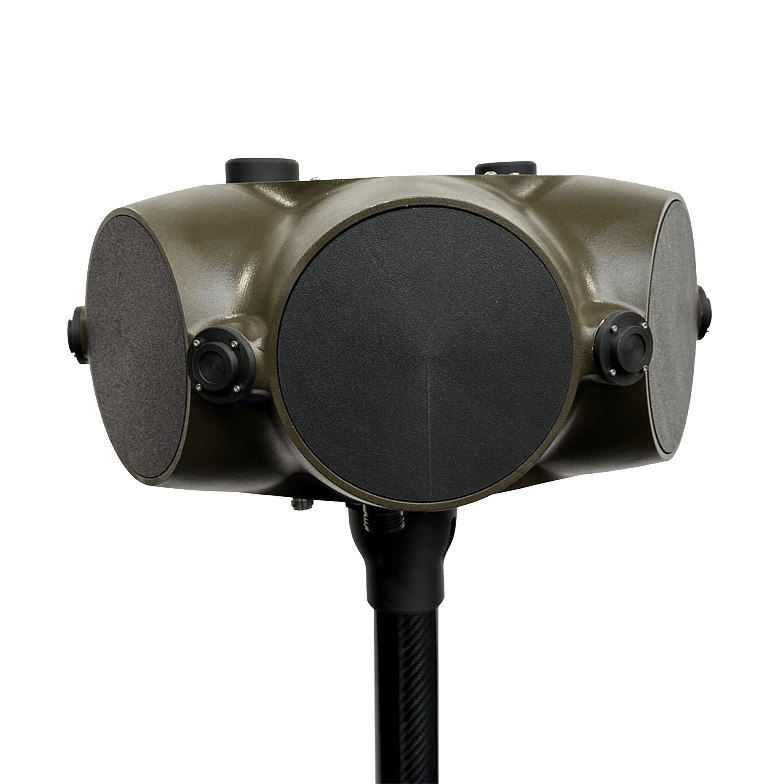

The DFH40 is a Compact Direction-Finding Head operating from 500MHz to 40GHz. It combines high-precision direction-finding (AoA) with wideband spectrum monitoring 2D/3D TDoA in a rugged, tactical format.
Overview
The DFH40 Direction Finding antenna is a robust, field-ready solution for precision monitoring and direction finding from 500MHz to 40GHz, offering flexibility and frequency breadth across the SHF and lower EHF frequency bands. Designed for tactical deployments, the DFH40 enables reliable real-time direction finding, signal interception, and emitter geolocation where traditional systems cannot operate.
Six high-performance spiral antennas with high-speed commutation and precise timing enable synchronized data correlation across multiple DF Heads and RFeye Nodes, delivering accurate geolocation of target signals using combined AoA and TDoA techniques.
LOBs can be overlaid onto a wide variety of maps, satellite images and 2D / 3D GIS datasets, to give a unique positional display showing source geolocation probabilities. All signal types in the range can be mapped, irrespective of signal power, bandwidth or frequency.
CRFS offers a selection of interchangeable DF Heads designed for use with Rapid Deployment Kits (RDKs), allowing users to build a toolkit suited to each mission.
